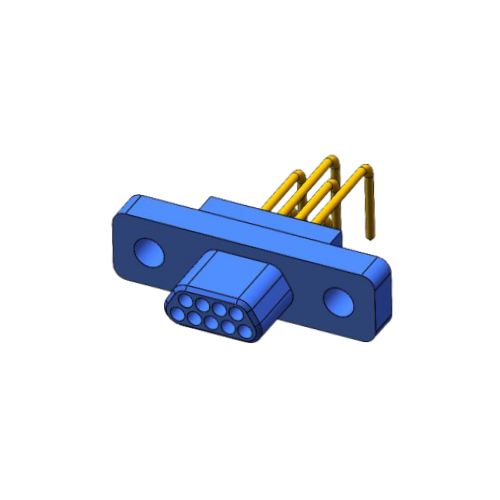

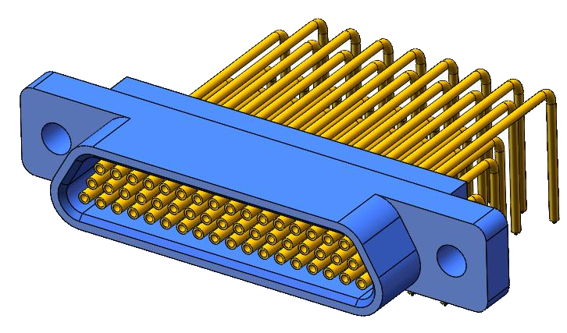

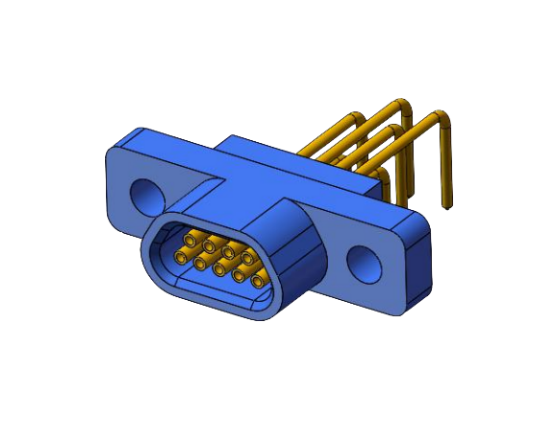

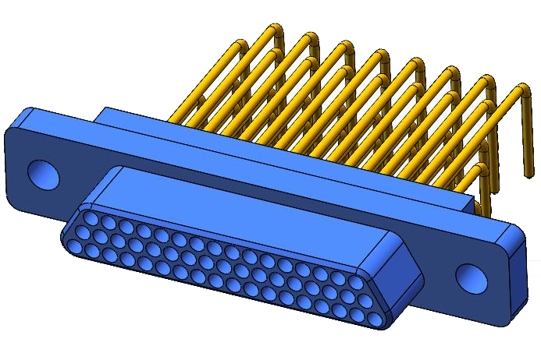

J30 90° elbow PCB series

The J30 90° elbow PCB series connector offers a 90-degree design for wire management in confined spaces.
Contacts are up to 51 per connector, providing design flexibility.
→pdf download
  • J30 90° elbow PCB series
  • J30 90° elbow PCB series
  • J30 90° elbow PCB series
  • J30 90° elbow PCB series

Desciption

Performance specification
Temperature: -55 ℃ ~ +125 ℃
Relative humidity: at 40 ℃, 95%
Vibration: at 10Hz ~ 2000Hz, acceleration 196 m/s²
Shock: 735 m/s²
Acceleration: 735 m/s²
Rated current: 3A
Contact resistance: ≤ 10 MΩ
Insulation resistance: ≥ 5000 MΩ
Dielectric strength: 800 V
Endurance: ≥ 500 cycle
