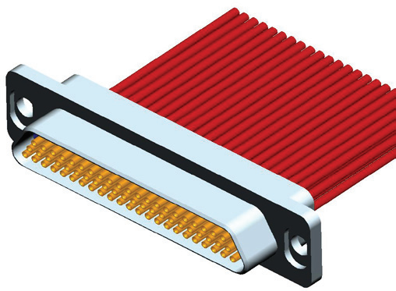

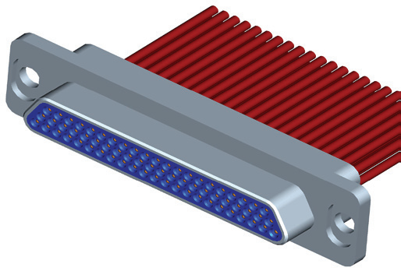

J29A series

The J29A series includes the following:
J29A crimp series
J29A solder series
J29A Stright PCB series
J29A 90° elbow PCB series
J29A 90° elbow PCB WⅠseries
pdf download
  • J29A series
  • J29A series
  • J29A series
  • J29A series

Desciption

Performance
specification Temperature: -55 ℃ ~ +125 ℃
Vibration: at 10Hz ~ 2000Hz,acceleration 200 m/s2
Shock: at 1200 m/s2, 6ms
Rated current: 5 A
Contact resistance: ≤ 10 mΩ
Insulation resistance: ≥ 5000 MΩ
Dielectric strength: 1500V
DC Endurance: ≥ 500 cycles

Features
Number of cores:
There are 9, 15, 21, 25, 31, 37, 51, 66 core eight specifications using twisted elastic needle (twist needle).
The contact spacing is 1.91mm and the row spacing is 1.65mm.
Conductor core cross-sectional area range :0.15mm²~ 0.3mm² .
