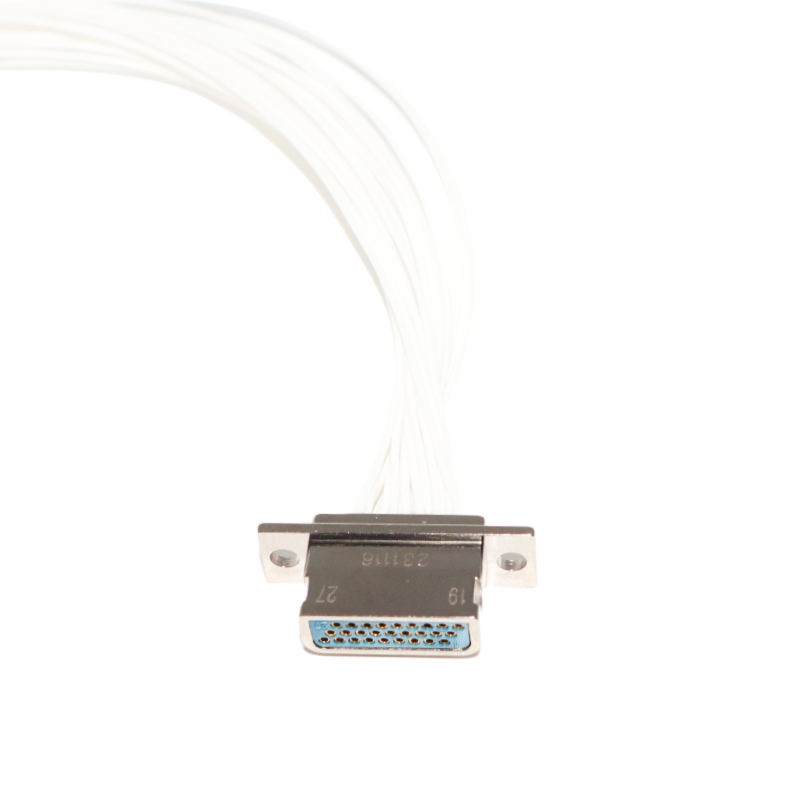

J14A rectangular connector is a low-frequency electrical connector with double safety locking mechanism, which is a connection locking form that takes into account fast operation and reliable use in rectangular electrical connectors. Round corner anti-insert design, small size, light weight.

  • J14A series
When the end of the J14A rectangular connector is solder cup type, the diameter of the welding wire hole is 60.6mm, and the cross-sectional area of the wire core is 0.15mm², but it should not exceed 0.2mm². When the end J14A rectangular connection is pin type, the diameter of the welding needle is 60.6-60.7mm.

Main technical performance
Rated current :3A
Contact resistance: Before life test :≤6mΩ
After life test :≤10mΩ
Insulation resistance:
Standard condition :≥2000 MΩ
High temperature :≥ 1000 MΩ
Humidity :≥20MΩ
Withstand voltage
Standard condition: 800V
Low pressure conditions: 250V

Performance specification
Temperature rating: -55 ℃ ~ +125 ℃
Relative humidity: 40 ℃ ± 2 ℃, 90% ~ 95%
Vibration: at 10 Hz~2000 Hz, acceleration 196 m/s²
Shock: 980 m/s²
Atmospheric pressure: 101.3 KPa ~ 1.33 KPa
Acceleration: 780 m/s².
