J14D series

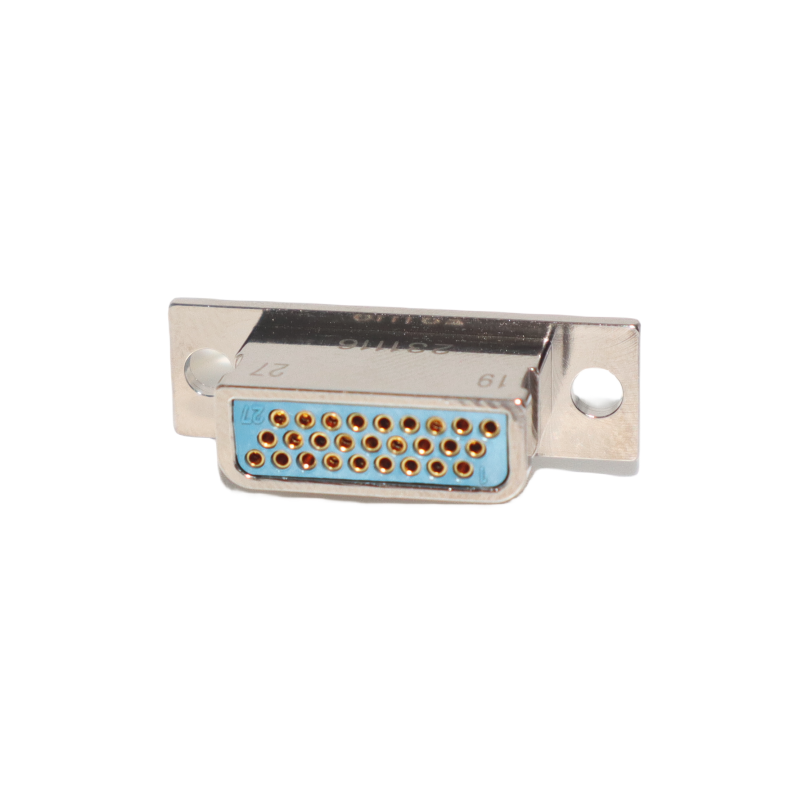

J14D series rectangular connector adopts metal shield shell, with round-corner anti-insert design, small size and light weight;
J14D series rectangular connector is equipped with a push-pull type double safety lock unloading structure.
J14D series rectangular connector can be divided into pin plug, socket plug; pin panel receptacle, socket panel receptacle; pin type cable receptacle, socket type cable receptacle and other specifications.
J14D series rectangular connector has the advantages of high density, lightweight and miniaturization, which can realize the system internal cable to cable, cable and PCB, and between PCB and PCB

→pdf download
  • J14D series
Main technical performance
Rated current: Contact diameter φ0.8: 3A
                        Contact diameter φ1.5: 10A
Contact resistance: Before life test: :≤6mΩ
                                After life test: ≤10mΩ
Insulation resistance:  Under standard conditions: ≥2000MΩ
                                    Under high temperature conditions:  ≥1000MΩ
                                    Under humid conditions:  ≥20MΩ Voltage resistance:
                                    Under standard conditions: 800V
                                    Under low pressure conditions:250V
Mechanical life: 500 cycles

Performance specification
Temperature rating: -55 ℃ ~ +125 ℃
Relative humidity: at 40 ℃ ± 2 ℃, 90% ~ 95%
Vibration: at 10 Hz~2000 Hz, acceleration 196 m/s²
Shock: 980 m/s²
Atmospheric pressure: 101.3 KPa ~ 1.33 KPa
Acceleration: 780 m/s²
