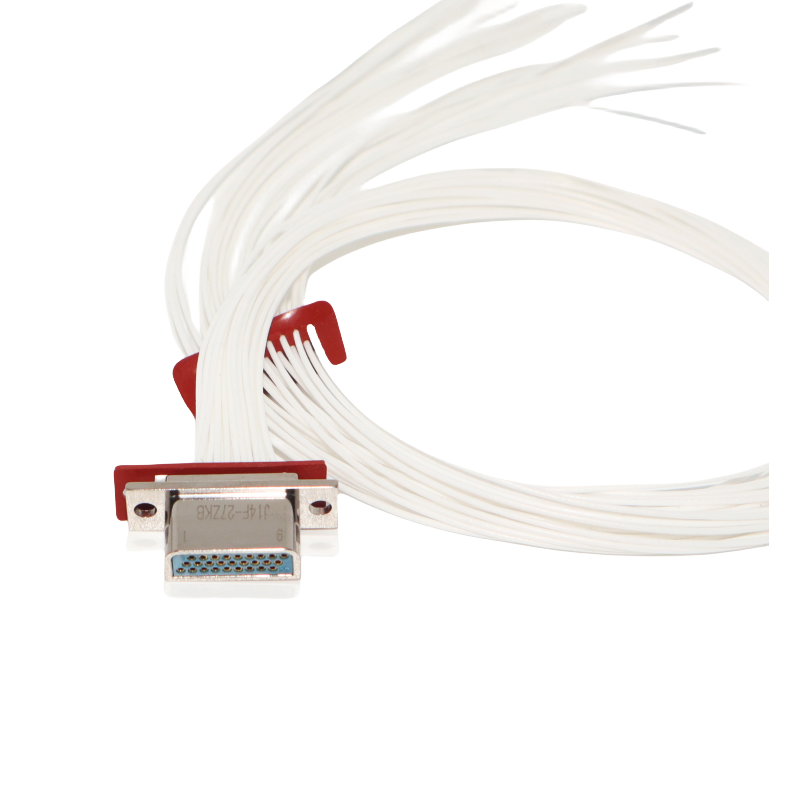

J14T series rectangular electronic connector

● Low frequency electrical connector
● Contact interface with dew proof sealing function
● Double safety locking mechanism, reliable locking
● Aluminum alloy shell, round corner anti-reverse insert
● Small size, light weight, easy to operate
● End connection form for ordinary welding, welding needle and 90° elbow PCB form
● Welding wire hole diameter φ0.6mm, Recommended welding wire core cross-sectional area is not more than 0.2mm²
● Used for electrical connection between various electronic instruments, meters and cables in places with dew proof sealing requirements.

→pdf download
  • J14T series rectangular electronic connector
Main technical performance
Rated current: 3A
Contact resistance: Before life test: :≤6mΩ
                 After life test: ≤10mΩ
Insulation resistance:  Under standard conditions: ≥2000MΩ
                                    Under high temperature conditions: ≥1000MΩ                                                                                                                                                          Under dew conditions: ≥10MΩ
                                    Under humid conditions:  ≥20MΩ
Voltage resistance: Under standard conditions: 500V
                                Under low pressure conditions: 250V
                                Under wet conditions: 250V
Mechanical life: 500 cycles

Performance specification
Temperature rating: -55 ℃ ~ +125 ℃
Relative humidity: at 40 ℃ ± 2 ℃, 90% ~ 95%
Vibration: at 10 Hz~2000 Hz, acceleration 196 m/s²
Shock: 980 m/s²
Atmospheric pressure: 101.3 KPa ~ 1.33 KPa
Acceleration: 780 m/s².
