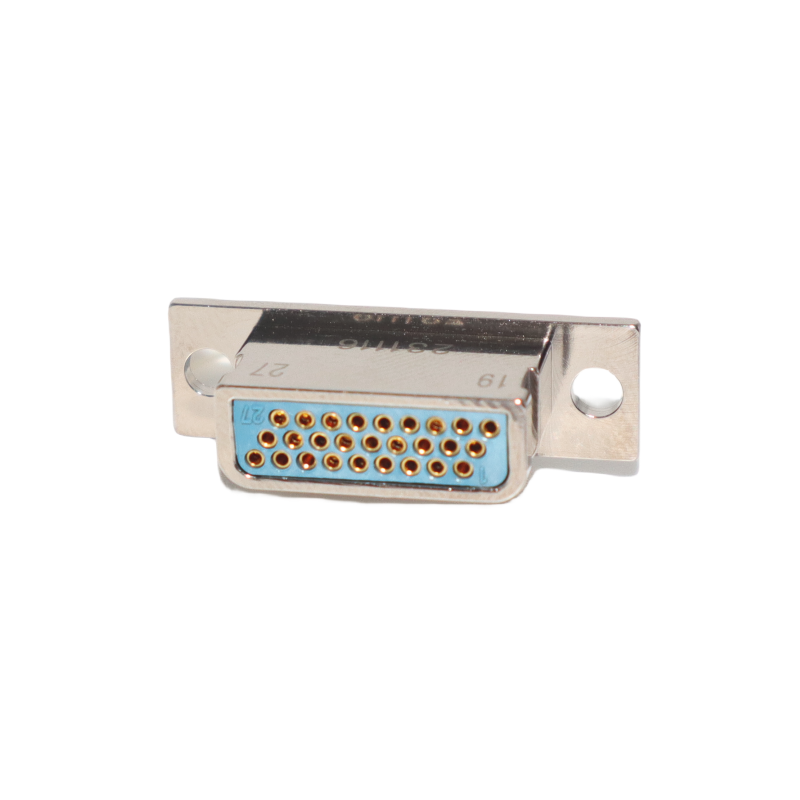

J14B series

● Belongs to the low frequency electrical connector
● Double safety locking mechanism, is a rectangular electrical connector taking into account the fast operation, the use of reliable connection locking form
● On the basis of the J14A series connector shell, increase the density of the contact parts and rainproof function  ● Rounded anti-reverse insert design
● Small size, light weight
● socket panel fixed
● With cable, The end connection form is crimped, and the cable specification and length are determined by the user

  • J14B series
Main technical performance
Rated current: 2A
Contact resistance: Before life test: ≤10mΩ
                               After life test: ≤15mΩ
Insulation resistance:  Under standard conditions:  ≥1000MΩ
                                    Under high temperature conditions:≥80MΩ
                                    Under humid conditions:  ≥10MΩ
                                    Under rain conditions:≥5MΩ
Voltage resistance:     Under standard conditions: 800V
                                   Under low pressure conditions:250V
                                   Mechanical life: 500 cycles

Performance specification
Temperature rating: -55 ℃ ~ +125 ℃
Relative humidity:  40 ℃ ± 2 ℃, 90% ~ 95%
Vibration: at 10 Hz~2000 Hz, acceleration 196 m/s²
Shock: 980 m/s²
Atmospheric pressure: 101.3 KPa ~ 1.33 KPa
Acceleration: 780 m/s².
